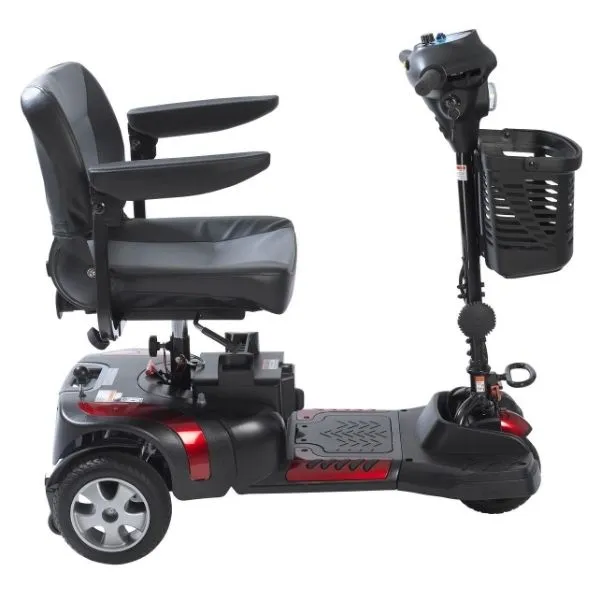

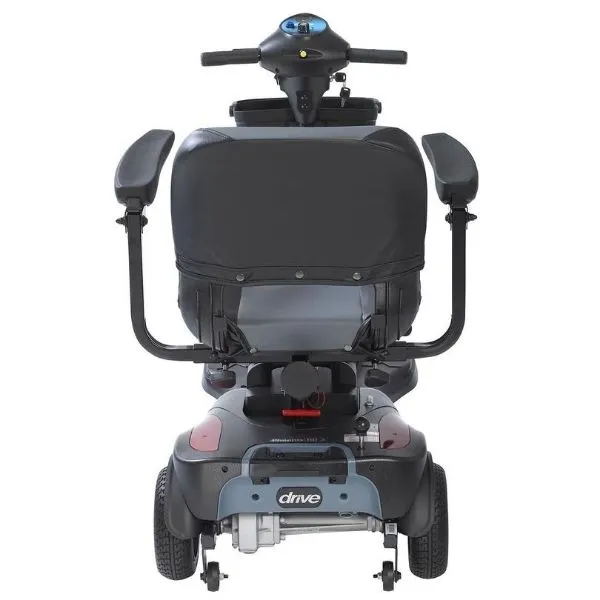

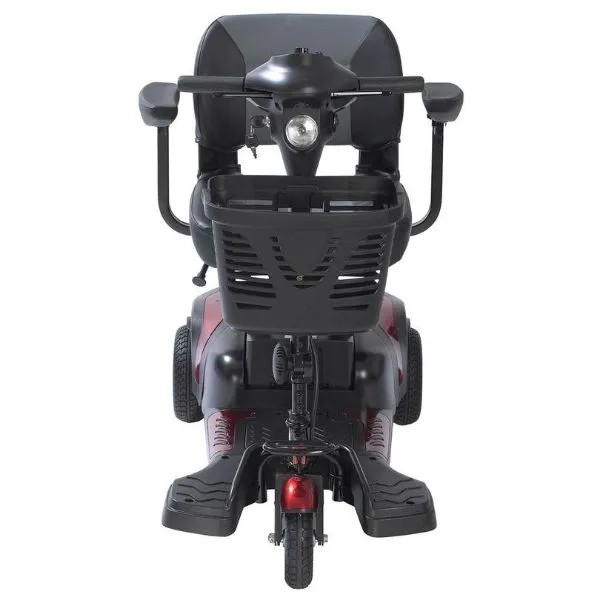

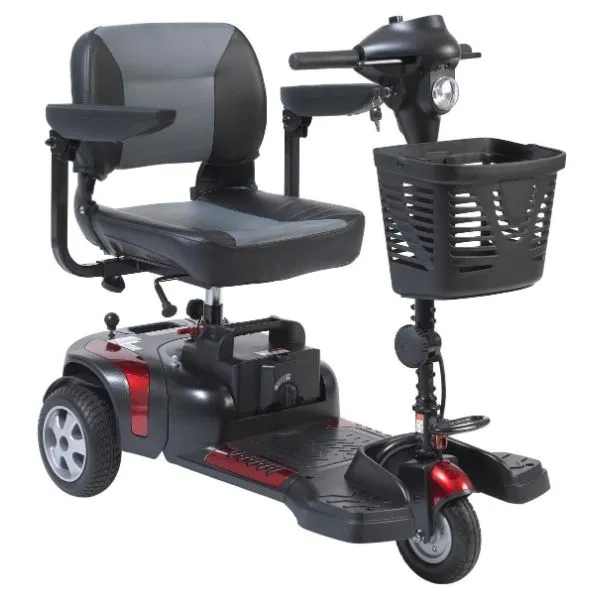

Phoenix HD 3 Wheel Mobility Scooter by Drive Medical
The Phoenix HD is a lightweight and easy to disassemble and perfect for taking wherever you want to go. Whether you are traveling around the neighborhood or far from home, this scooter is perfect and easy to use. The Phoenix can be taken apart quickly and easily into four easy-to-handle pieces for loading into a car, truck or van to take shopping or on vacation.
This also offers great features which include color change panels in red and blue and a "finger-pull" throttle control to make operating the scooter easier if you experience limited strength in your hands.
Drive Medical Phoenix HD Benefits & Features:
- Quick and easy disassembly
- Includes interchangeable color panels in Red and Blue
- Armrests are padded and adjustable
- Quick connect batteries

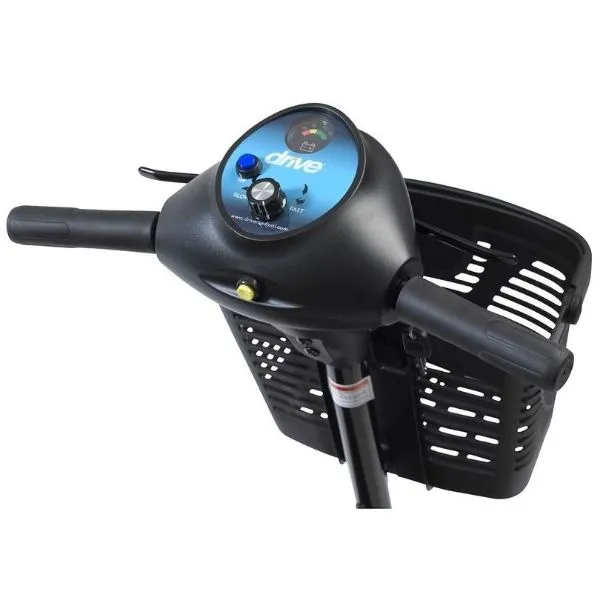

- Ergonomic throttle control
- Height-adjustable swivel seat with two-tone upholstery
- Flat-free, non-marking tires
- Large, plastic carry basket
- Easy-to-adjust tiller
- Anti-tip wheels
- Headlight
- Swivel seat with fold-down backrest
-
Easy free wheel operation
| Top Speed: | 4.00 mph |
|---|---|
| Turning Radius: | 43" |
| Drive Range: | 15.00 miles |
| Heaviest Piece: | 32 lbs. |
| Ground Clearance: | 3.75" |
| Max Incline Rating: | 6 ° |
| Disassembles: | Yes |
| Delta Tiller: | No |
| Seat Width: | 17.5"/20" |
| Max Seat to Ground Height: | 22" |
| Lowest Seat to Ground Height: | 20" |
| Max Seat to Deck Height: | 22" |
| Multiple Seating Options: | Yes |
| Power Elevating Seat: | No |
| Height Adjustable Seat: | Yes |
| High-Back Seat: | No |
| Flip-Back Armrests: | Yes |
| Wheel Type: | Three Wheeled |
| Front Wheel Size: | 9" |
| Rear Wheel Size: | 9" |
| Overall Width: | 22.5" |
| Overall Length: | 39.0" |
| Transportable/Collapsible: | Yes |
| Battery Type: | 12V x 20AH (pair) low profile w/tab connectors |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Type: | Rear-Wheel Drive |
| Braking System: | Electromagnetic |
| Basket Included: | Yes |
| Headlight: | Yes |
| Weight Without Batteries: | 84.00 lbs. |
| Battery Pack Weight: | 31.00 lbs. |
| Seat Section Weight: | 21.00 lbs. |
| Base and Tiller Weight: | 63.00 lbs. |
| Expedited Shipping Available | No |
| Charging Port Location: | Tiller |
| Product Weight: | 115 lbs. |
| Box 1 | |
| Shipping Weight: | 149.00 lbs. |
| Length: | 51.00" |
| Width: | 22.00" |
| Height: | 24.00" |
Warranty Information for the Phoenix HD 3-Wheel Travel Scooter
Drive Medical Limited Lifetime Warranty
If you have a problem with your scooter, simply call one of our expert customer service representatives; Electric Wheelchairs USA will have the parts shipped directly to you - free of charge. Every effort will be made to return your scooter to working condition in the shortest time possible. The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.
Lifetime Limited Warranty - Product Frame, Seat Post, Platform, Frame Welds
24 Months Limited Warranty - Electronic Controller, Motor/Gearbox Assembly
12 Month Warranty - Batteries
The following are warranted to be free of defects in materials and workmanship at time of delivery and are not included in any additional warranties:
Plastic Shrouds and Footrests, Upholstery and Seating, Armrest Pads, Tires and Tubes, Anti-Tip Wheels, Floor Mats, Plastic Connections, Metal Connection Pins, Hardware, Nuts and Bolts, Brake Pads, Front Rigging Mounting Brackets and any other piece that is not listed in the above warranty.
The warranty does not apply if the unit has been altered in any way, misuse or accident has occurred, batteries were not properly stored, exceeding the weight limit of the unit and acts of nature.
